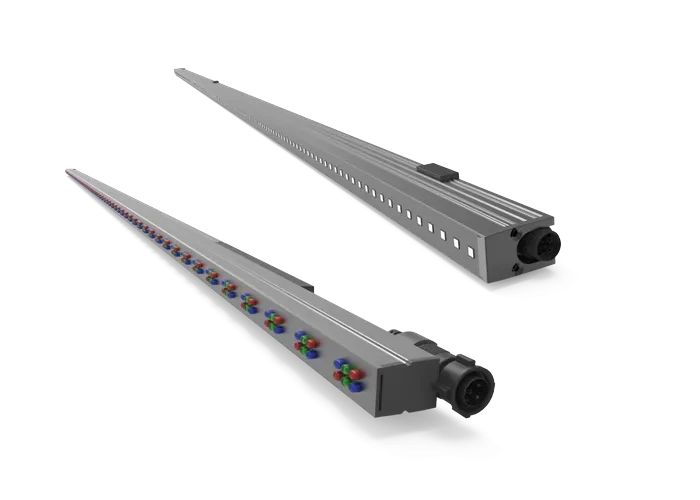

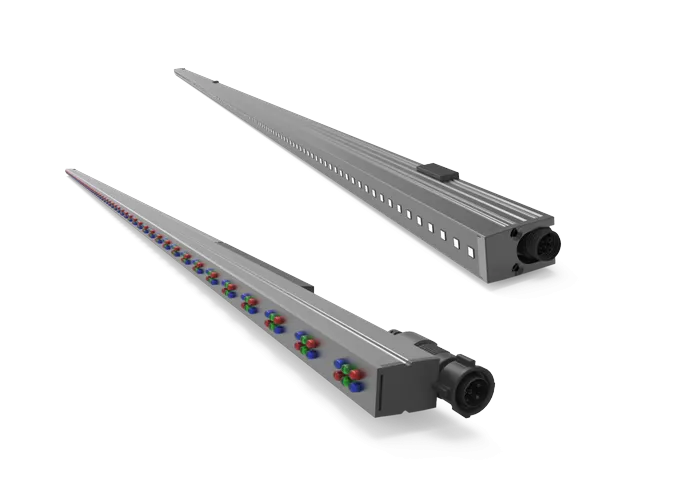

Umesh VT Series
Umesh VT Series
Beyond Limits
Ultimate Visual Performance｜Any Angle, With Your Customizing ｜Ultra-Robust Protection
Ultimate Visual Performance｜Any Angle, With Your Customizing ｜Ultra-Robust Protection
| Model | VT-1625D-S2 | VT-1625D-S4 | VT-1631D-S4 | VT-1825M-D2 | VT-1831M-D2 | VT-2031M-D4 | VT-8031G-D4X4 |
| Cabinet Parameter | |||||||
| Pixel pitch | 25 mm | 25 mm | 31.25 mm | 25 mm | 31.25 mm | 31.25 mm | 31.25 mm |
| Direction | Vertical or Horizontal | Vertical or Horizontal | Vertical or Horizontal | Vertical or Horizontal | Vertical or Horizontal | Vertical or Horizontal | Vertical or Horizontal |
| Diode Type | SMD | SMD | SMD | DIP | DIP | DIP | DIP |
| Pixel Configuration | 2R2G2B | 4R4G4B | 4R4G4B | 2R2G2B | 2R2G2B | 5R4G4B | 5R4G4B |
| Pixel Density | 40 dot/㎡ | 40 dot/㎡ | 40 dot/㎡ | 32 dot/㎡ | 32 dot/㎡ | 32 dot/㎡ | 128 dot/㎡ |
| Panel Size | 2000 x 16 mm | 2000 x 16 mm | 2000 x 16 mm | 2000 x 18 mm | 2000 x 18 mm | 2000 x 20 mm | 1500 x 80 mm |
| Weight | 1.1 Kg (0.55 Kg/㎡) | 1.1 Kg (0.55 Kg/㎡) | 1.1 Kg (0.55 Kg/㎡) | 1.5 Kg (0.75 Kg/㎡) | 1.5 Kg (0.75 Kg/㎡) | 1.5 Kg (0.75 Kg/㎡) | 3.5Kg/㎡ |
| Installation | Front installation | Front installation | Front installation | Front installation | Front installation | Front installation | Front installation |
| Maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| Optical Parameter | |||||||
| Material | Aluminum profile & PC mask (customized color available) | Aluminum profile & PC mask (customized color available) | Aluminum profile & PC mask (customized color available) | Aluminum profile & PC mask (customized color available) | Aluminum profile & PC mask (customized color available) | Aluminum profile & PC mask (customized color available) | Aluminum profile & PC mask (customized color available) |
| Brightness | 3cd/dot | 6cd/dot | 6cd/dot | 12cd/dot | 12cd/dot | 30cd/dot | 20cd/dot |
| Color Temperature | 3200 – 9300 K (Adjustable) | 3200 – 9300 K (Adjustable) | 3200 – 9300 K (Adjustable) | 3200 – 9300 K (Adjustable) | 3200 – 9300 K (Adjustable) | 3200 – 9300 K (Adjustable) | 3200 – 9300 K (Adjustable) |
| Gray scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Viewing Angle (Horizontal / Vertical) | 110°/110° | 110°/110° | 110°/110° | 90°/45° | 90°/45° | 90°/45° | 90°/45° |
| Electrical Parameter | |||||||
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Video Frame Rate | ≥ 60 Hz | ≥ 60 Hz | ≥ 60 Hz | ≥ 60 Hz | ≥ 60 Hz | ≥ 60 Hz | ≥ 60 Hz |
| Input Power <Max> | 15 W/m | 20 W/m | 20 W/m | 15.5 W/m | 12.5 W/m | 28.8 W/m | 128 W/m |
| Input Power <Typical> | 4.5 W/m | 6.5 W/m | 6.5 W/m | 5.1 W/m | 3.7 W/m | 9.6 W/m | 42.7 W/m |
| Operation Conditions | |||||||
| Input Voltage | 48VDC | 48VDC | 48VDC | 48VDC | 48VDC | 48VDC | 100 – 264 VAC |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature/Humidity | Temperature: -20°C to 50°C; Humidity: 10% – 90% | Temperature: -20°C to 50°C; Humidity: 10% – 90% | Temperature: -20°C to 50°C; Humidity: 10% – 90% | Temperature: -30°C to 55°C; Humidity: 10% – 90% | Temperature: -30°C to 55°C; Humidity: 10% – 90% | Temperature: -30°C to 55°C; Humidity: 10% – 90% | Temperature: -30°C to 55°C; Humidity: 10% – 90% |
| System | |||||||
| System | DMX | DMX | DMX | Megabit | Megabit | Megabit | Gigabit |
| Certification | CCC | CCC | CCC | CCC/CE/CB | CCC/CE/CB | CCC/CE/CB | CCC/CE/CB |
