Visible Or Invisible, We Are Capable
ME0307/ME07

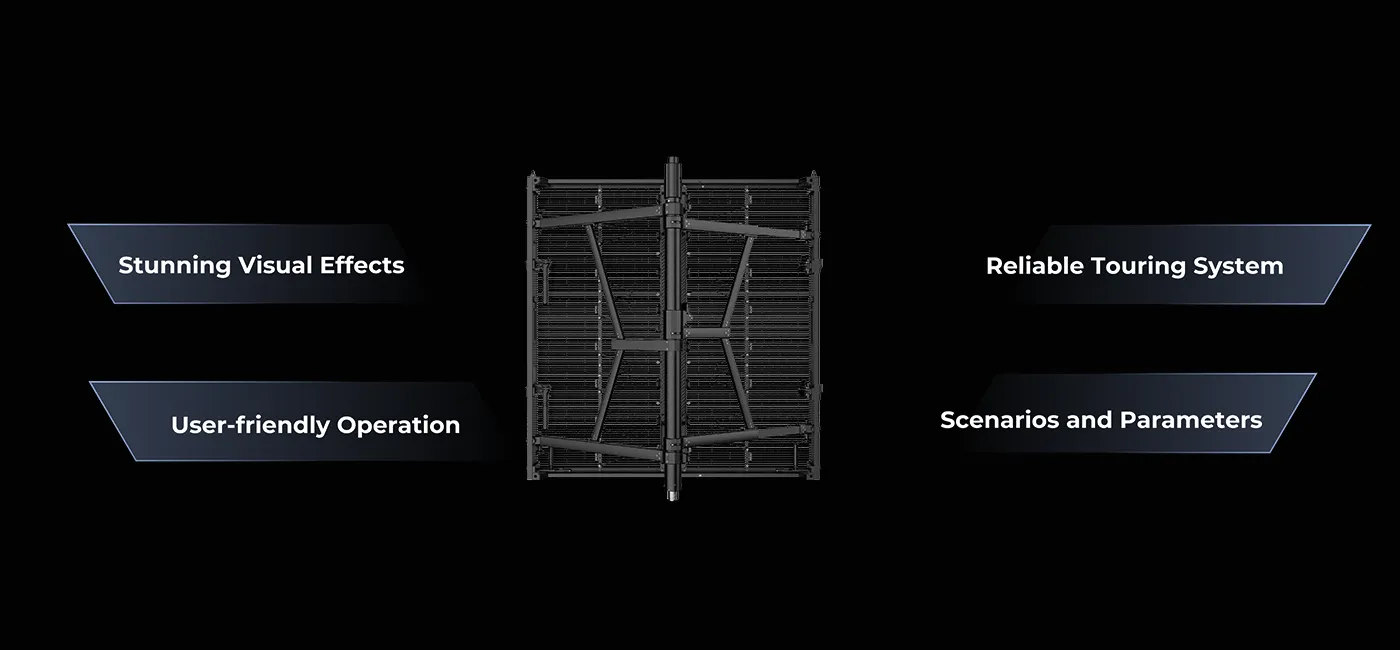

Stunning Visual Effects
Reliable Touring System
User-friendly Operation
Scenarios and Parameters

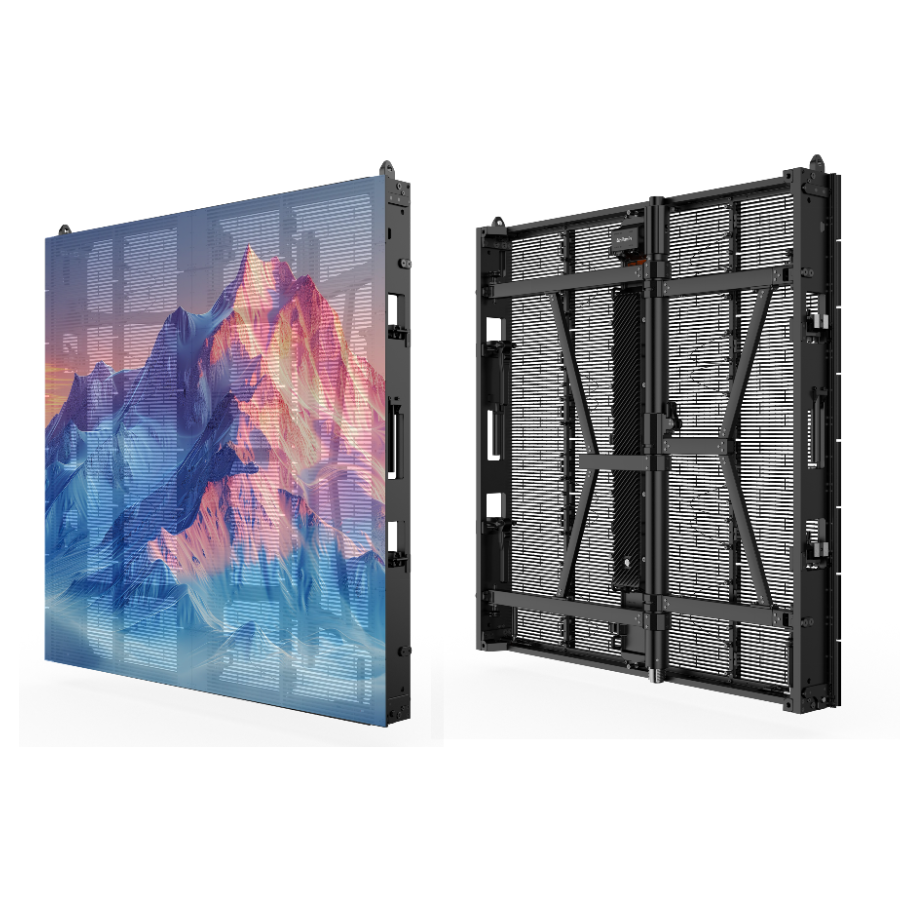

• UpadⅣ ME0307&07 achieves higher levels of transparency by up to 50% without compromising image quality and the broadcast of sound behind the stage, looks simple, neat, and high-grade.
• Upad ME in the touring dollies enables faster connections at the event sites, reducing both time and labor costs • Measuring 1120*1062*1225mm, 8-in-1 dolly with two protective metal nets
• Foldable: you can save space for transportation and storage. • Detachable: you can remove the independent frames from the panels when there is no need. • Climbable: you can climb the frames behind the panels for fast maintenance.
• Panel Size With Folded Wind-bracing Frame W1000×H1000×D106 mm Without Folded Wind-bracing Frame W1000×H1000×103 mm • Weight With Folded Wind-bracing Frame 25.5 kg/panel Without Folded Wind-bracing Frame 20 kg/panel
• Two strong and telescopic positioning pins, sturdy and easy to position, convenient to pull down to avoid the pin’s light reflection on the stage • Robust enough to the 8-level gale-force winds (20m/s), reaching a maximum height of 24 meters in the hanging installation.
• Smaller size of W500mm×H125mm, purpose-made pad of module for better heat dissipation • Pop-out module handle, easy to maintain • Evenly distributed magnets for better flatness and positioning
• Curve Range: (Convex) -15°~+15°(Concave), 2.5° per unit, practical for more scenarios • Handle of Curve Lock: Vertical and streamlined design, ensuring greater transparency, increased operational space, labor efficiency, and ergonomic consistency.
• The modular design allows fast rear maintenance of modules and power, ensuring efficiency and convenience of serviceability without disrupting system operation.
