​UpanelS

Intelligent Front Access 16:9 LED Display Unit


Intelligent front access

Non-touching system
All module, system, power supply and cable are front access

16:9 ratio

The word's first golden ratio of 16:9 standard cabinet
which is in line with human eye pupil ratio
2K, 4K and 8K compatible

Bezel-free

Dual backup system

Power supply, signal cable, control system, socket backup available

Automatic detection

Each LED module surpport temperature
voltage and connection detection

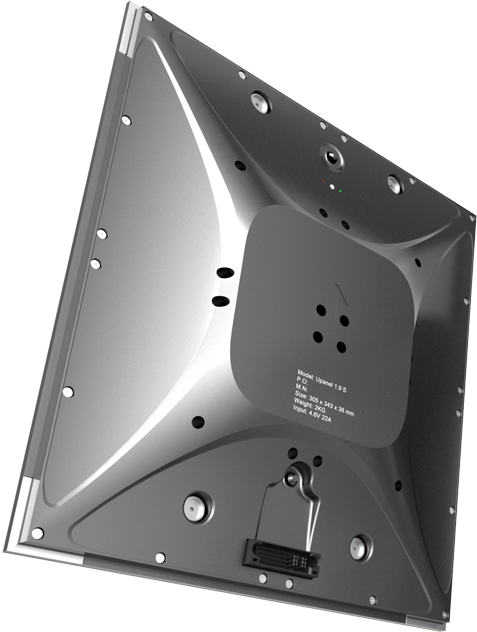

Secure and stable

Cabinet and module are cable-free

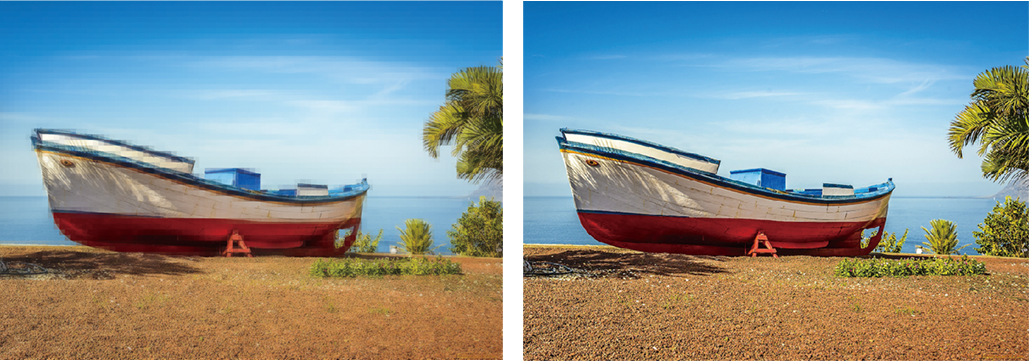

Automatic calibration

Before calibration

After calibration





Parameter

​ Item
Cabinet Resolution (pixels)
Cabinet Size(mm)
Material
Brightness(cd/sqm)
Weight(kg/cabinet)
Upanel0.9S Upanel1.2S Upanel1.4S Upanel1.5S Upanel1.9S
640×360 480×270 416×234 384×216 320×180
 W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in)
 W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in)
 W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in)
 W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in)
 W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in)

Die - casting Aluminum Die - casting Aluminum Die - casting Aluminum Die - casting Aluminum Die - casting Aluminum
​ 1000 1000 1000 1000 1000
7.8 7.8 7.8 7.8 7.8
