UpanelS
Intelligent Front Access 16:9 LED Display Unit

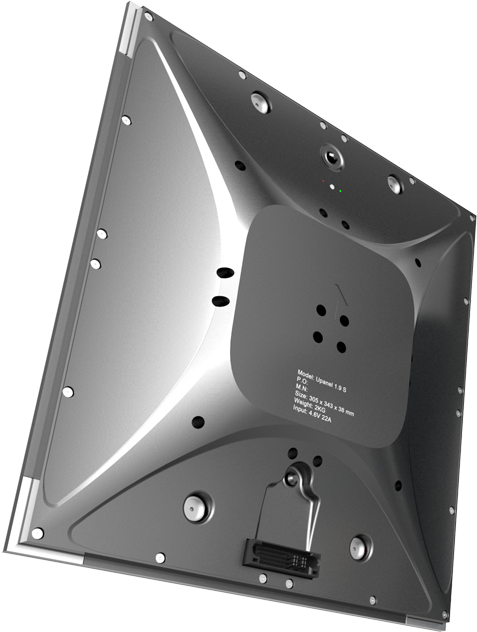

Intelligent front access
Advanced Automatic Module Removal
All Modules, Power Supplies, and internal electronics and cables are replaceable from the front.
16:9 ratio
16:9 ratio is maintained when horizontal and vertical cabinets are the same,
i.e. 2 x 2 = 16:9 and 4 x 4 = 16:9
Bezel-free

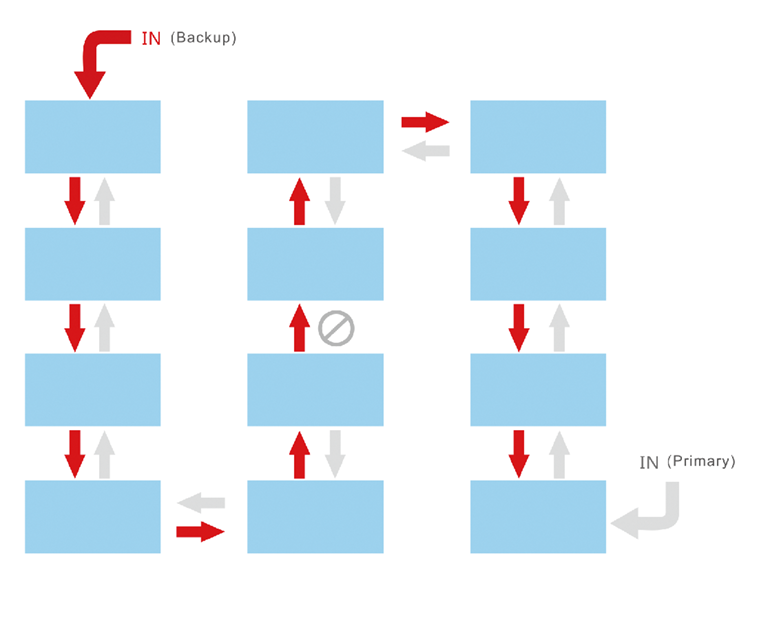

Full Redundancy
Power, Data and the control system can be wired for increased reliability.
System Monitoring
LED Module, Power and Data health are Automatically monitored.
Secure and stable
Integrated Power and Data means no external cables.

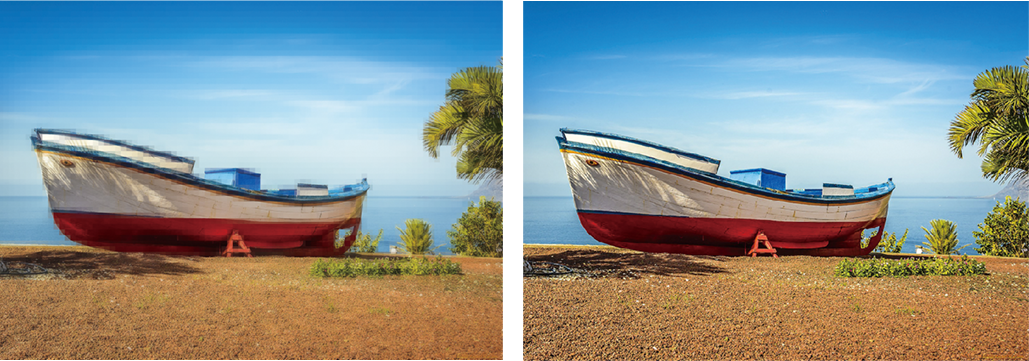

Automatic calibration
Before calibration
After calibration
Parameter
|
Item |
|---|
|
Cabinet Resolution (pixels) |
|
Cabinet Size (mm) |
|
Material |
|
Brightness (cd/sqm) |
|
Weight (kg/cabinet) |
|
Upanel0.9S |
Upanel1.2S |
Upanel1.4S |
Upanel1.5S |
Upanel1.9S | |
|---|
|
640×360 |
480×270 |
416×234 |
384×216 |
320×180 |
|
W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in) |
W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in) |
W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in) |
W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in) |
W609.92×H343.08×D71
(W24.01in*H13.51in*D2.79in) |
|
| Die-cast | Die-cast | Die-cast | Die-cast | Die-cast |
|
| 600 | 600 | 600 | 600 | 600 |
|
|
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
|
